Roofing profile
Trapeze Inverted
Trapeze Inverted presents a robust and striking alternative for a variety of siding and cladding endeavors. The availability of custom-cut panel lengths ensures a fast and effortless installation process.

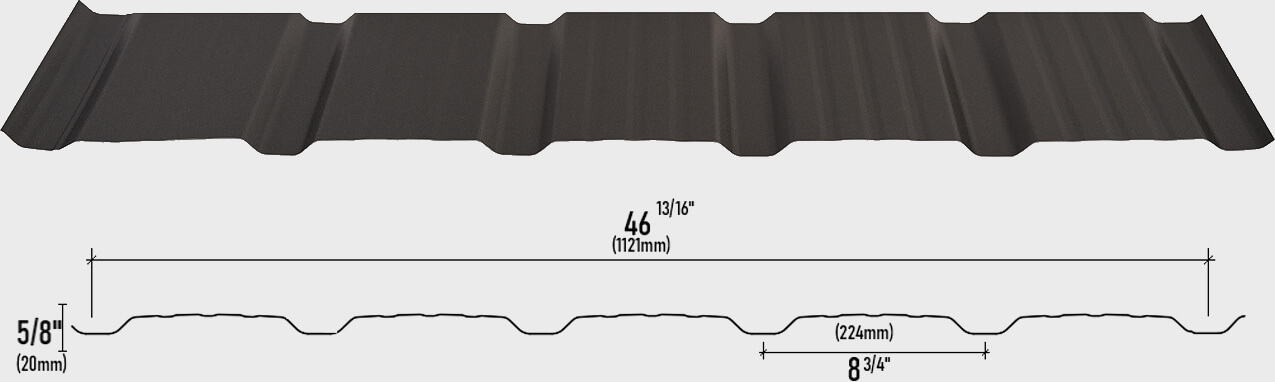

Technical details
Effective coverage width
approx. 44 in
1121 mm
Total width
approx. 46.8 in
1189 mm
Steel sheet thickness
26 gauge
Zinc coating
G90
Total height
approx. 0.8 in
20 mm
Min. panel length
approx. 2 in
50 mm
Max. panel length
approx. 394 in
10,000 mm
Application
Walls only
Available colours
26G
*Colours may vary from the actual product.
Terra Cotta
RAL-8004
RAL-8004
Graphite Grey
RAL-7024
RAL-7024
Oxide Red
RAL-3009
RAL-3009
Black
RAL-9005
RAL-9005
Ocean Blue
RAL-5020
RAL-5020
Blue Gray
RAL-7016
RAL-7016
Burgundy
RAL-3005
RAL-3005
Chocolate Brown
RAL-8017
RAL-8017
Green
RAL-6020
RAL-6020
Moca Brown
RAL-8017
RAL-8017
Bone White
QC-28273
QC-28273
Warranty
50
YEARS
YEARS
Manufacturer's warranties
