Roofing profile

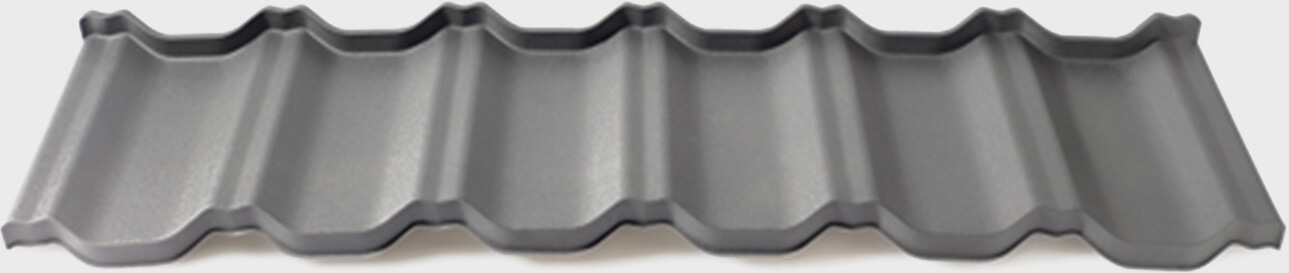

Nova Panel

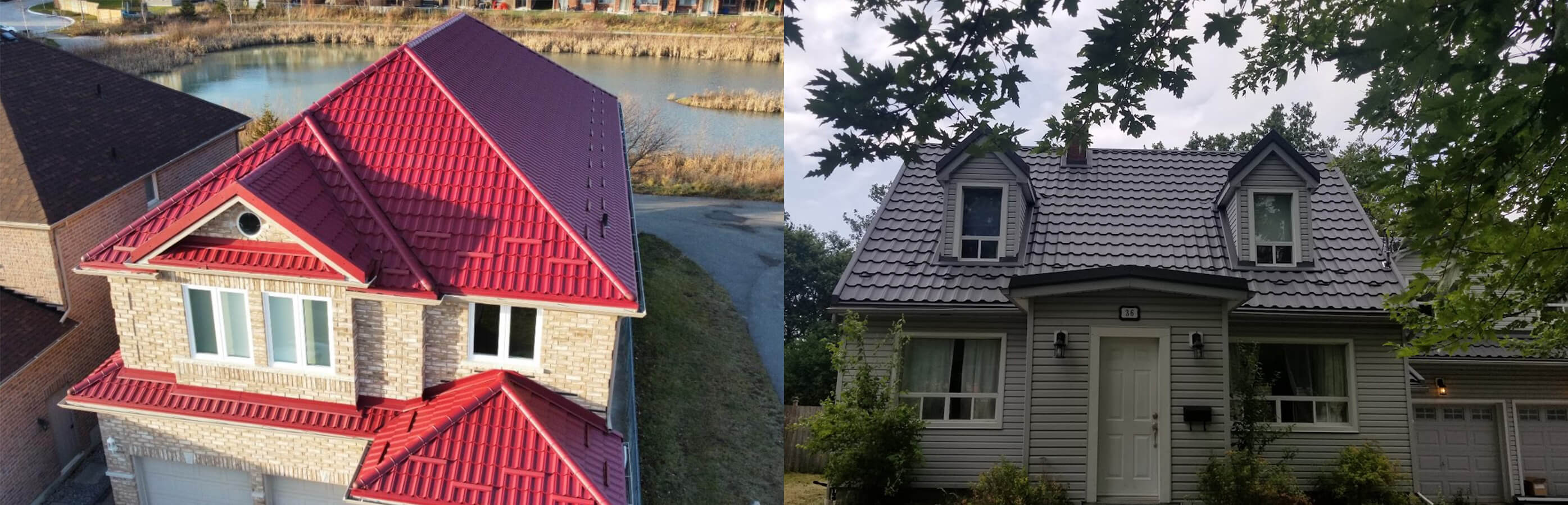

Blending timeless and contemporary aesthetics, this product creates rich texture and depth. It serves as an ideal solution for residential purposes, enhancing the visual allure of your home's exterior.
Technical details
Effective coverage width
approx. 45 in
1140 mm
Total width
approx. 47 in
1191 mm
Steel sheet thickness
26 gauge
Zinc coating
G90
Module length
approx. 13.75 in
350 mm
Module height
approx. 1 in
25 mm
Total height
approx. 1.7 in
43 mm
Min. panel length
approx. 14.3 in
365 mm
Max. panel length
approx. 236 in
6000 mm
Available colours
26G
*Colours may vary from the actual product.
Terra Cotta
RAL-8004
RAL-8004
Graphite Grey
RAL-7024
RAL-7024
Oxide Red
RAL-3009
RAL-3009
Black
RAL-9005
RAL-9005
Ocean Blue
RAL-5020
RAL-5020
Blue Gray
RAL-7016
RAL-7016
Burgundy
RAL-3005
RAL-3005
Chocolate Brown
RAL-8017
RAL-8017
Green
RAL-6020
RAL-6020
Moca Brown
RAL-8017
RAL-8017
Bone White
QC-28273
QC-28273
Warranty
50
YEARS
YEARS
Manufacturer's warranties
Troughed metal sheets, Roof sheets, Roof fittings, Roof and facade panels
