Roofing profile
Mont Blanc

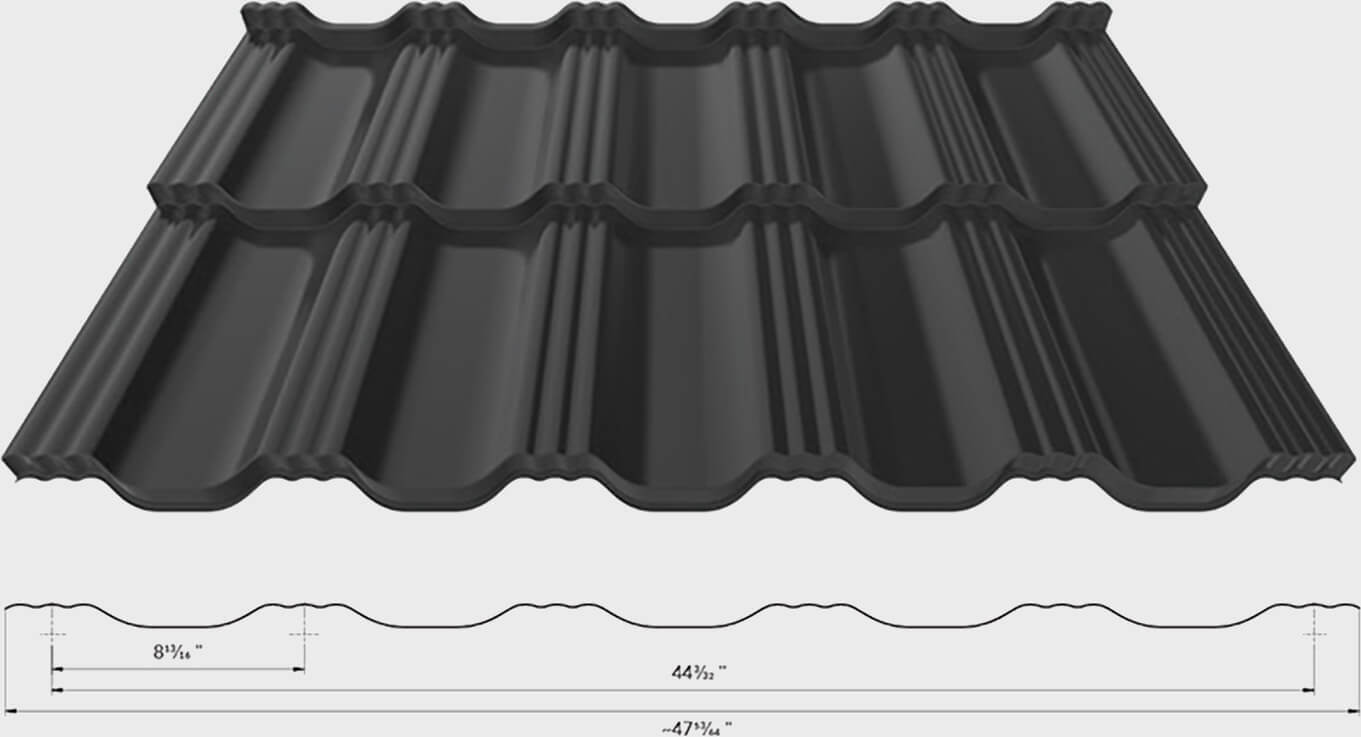

Mont Blanc is a symmetrical and modular metal roofing tile, distinguished by its remarkable design accentuated by its prominent feature - the triple rib.
Technical details
Overal width
approx. 48 in
1220 mm
Effective coverage width
approx. 44 in
1120 mm
Steel sheet thickness
approx. 0.020 in
0.5 mm
Recommended length
approx. 235 in
5969 mm
Tile rib height
approx. 1/1.20 in
30 mm
Module length
approx. 14 in
355 mm
Profile height
approx. 1 in
25 mm
Available colours
Pladur®
Wrinkle mat RAL Premium
Pladur® Wrinkle
MAT TK 6020
MAT TK 6020
Pladur® Wrinkle
MAT TK 8004
MAT TK 8004
Pladur® Wrinkle
MAT TK 3009
MAT TK 3009
Pladur® Wrinkle
MAT TK 8017
MAT TK 8017
Pladur® Wrinkle
MAT TK 8019
MAT TK 8019
Pladur® Wrinkle
MAT TK 7016
MAT TK 7016
Pladur® Wrinkle
MAT TK 7024
MAT TK 7024
Pladur® Wrinkle
MAT TK 9005
MAT TK 9005
Pladur®
Wrinkle Mat Plus
Pladur® Wrinkle
MAT Plus 9005
MAT Plus 9005
Pladur® Wrinkle
MAT Plus 7016
MAT Plus 7016
Pladur® Wrinkle
MAT Plus 8019
MAT Plus 8019
Warranty
50
YEARS
YEARS
Manufacturer's warranties
Troughed metal sheets, Roof sheets, Roof fittings, Roof and facade panels
