Roofing profile

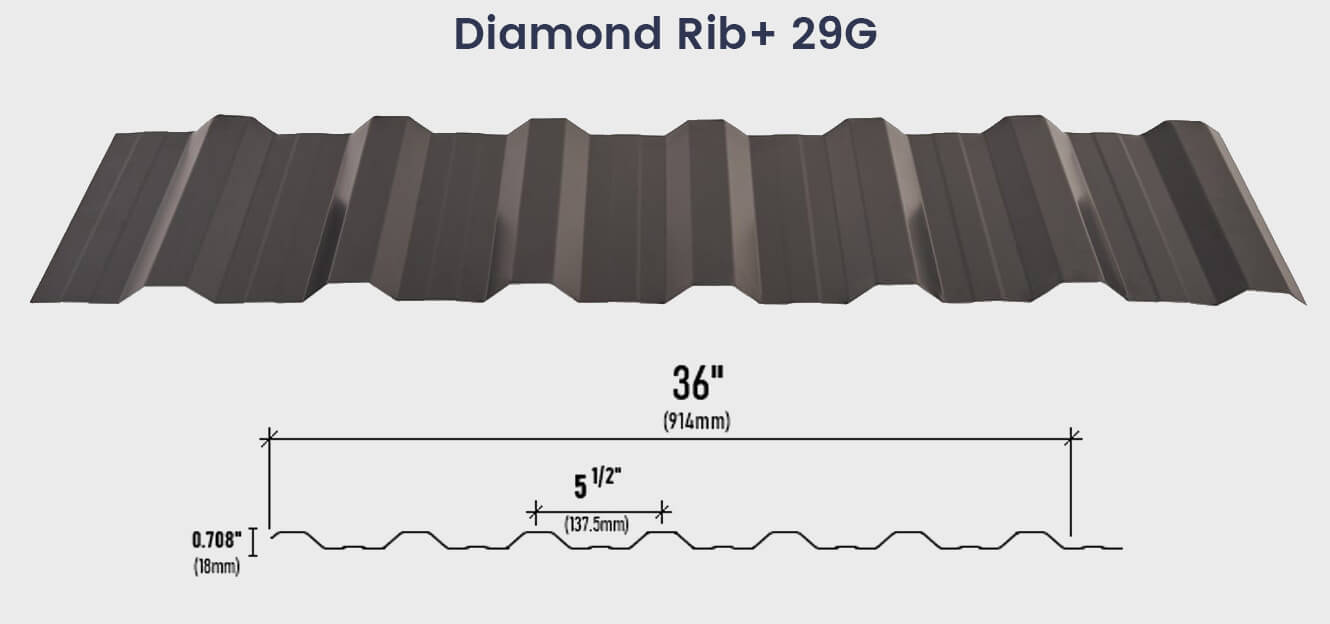

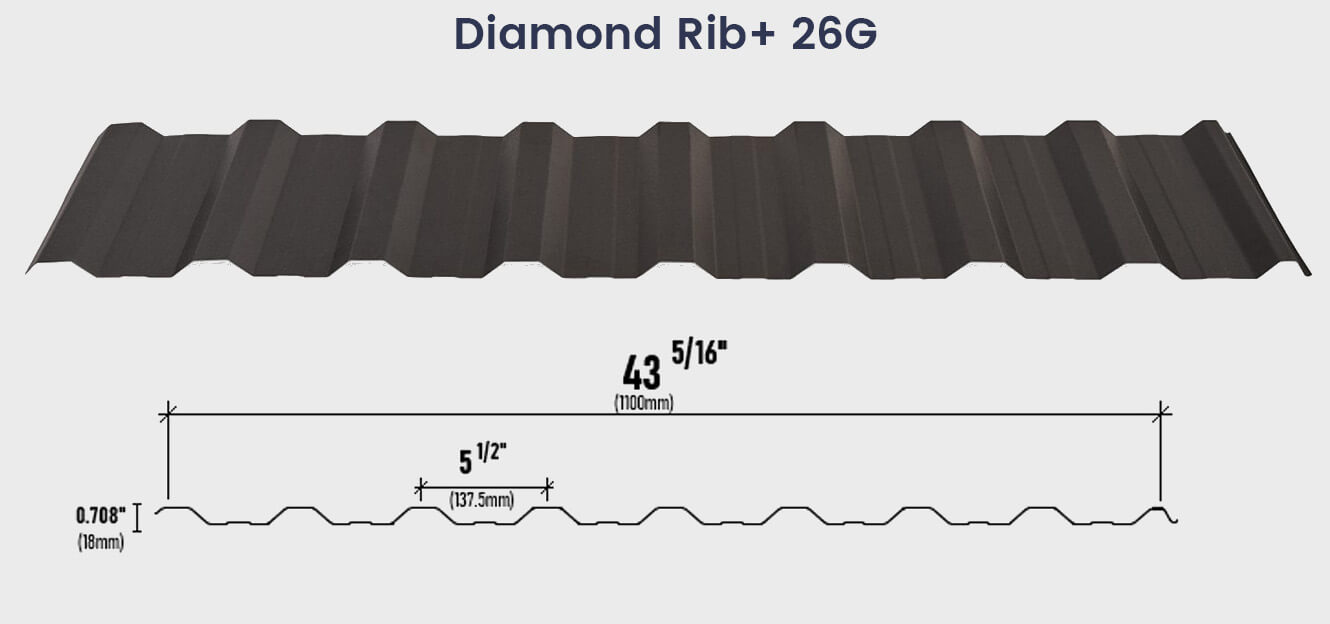

Diamond Rib+
Diamond Rib + stands as a flexible and sturdy choice suitable for both roofing and cladding uses, offered in both 26 and 29 gauge steel variants. Its adaptability extends to both indoor and outdoor applications.
Technical details
Effective coverage width
approx. 43/36 in
1100mm/914mm
Steel sheet thickness
26/29 gauge
Zinc coating
G90/AZ50
Total height
approx. 0.7 in
18 mm
Min. panel length
approx. 14 in
50 mm
Max. panel height
approx. 394 in
10,000 mm
Application
Roof and wall or wall only
Available colours
26G
*Colours may vary from the actual product.
Terra Cotta
RAL-8004
RAL-8004
Graphite Grey
RAL-7024
RAL-7024
Oxide Red
RAL-3009
RAL-3009
Black
RAL-9005
RAL-9005
Ocean Blue
RAL-5020
RAL-5020
Blue Gray
RAL-7016
RAL-7016
Burgundy
RAL-3005
RAL-3005
Chocolate Brown
RAL-8017
RAL-8017
Green
RAL-6020
RAL-6020
Moca Brown
RAL-8017
RAL-8017
Bone White
QC-28273
QC-28273
29G
*Colours may vary from the actual product.
White White
QC-28317
QC-28317
Bone White
QC-28273
QC-28273
Stone Grey
QC-28305
QC-28305
Regent Grey
QC-28730
QC-28730
Charocoal
Black
RAL-9005
RAL-9005
Coffee Brown
Dark Brown
Antique Linen
Tan
Tile Red
Burgundy
RAL-3005
RAL-3005
Dark Red
Bright Red
Slate Blue
Melchers Green
Warranty
50
YEARS
YEARS
Manufacturer's warranties
Troughed metal sheets, Roof sheets, Roof fittings, Roof and facade panels
