Roofing profile

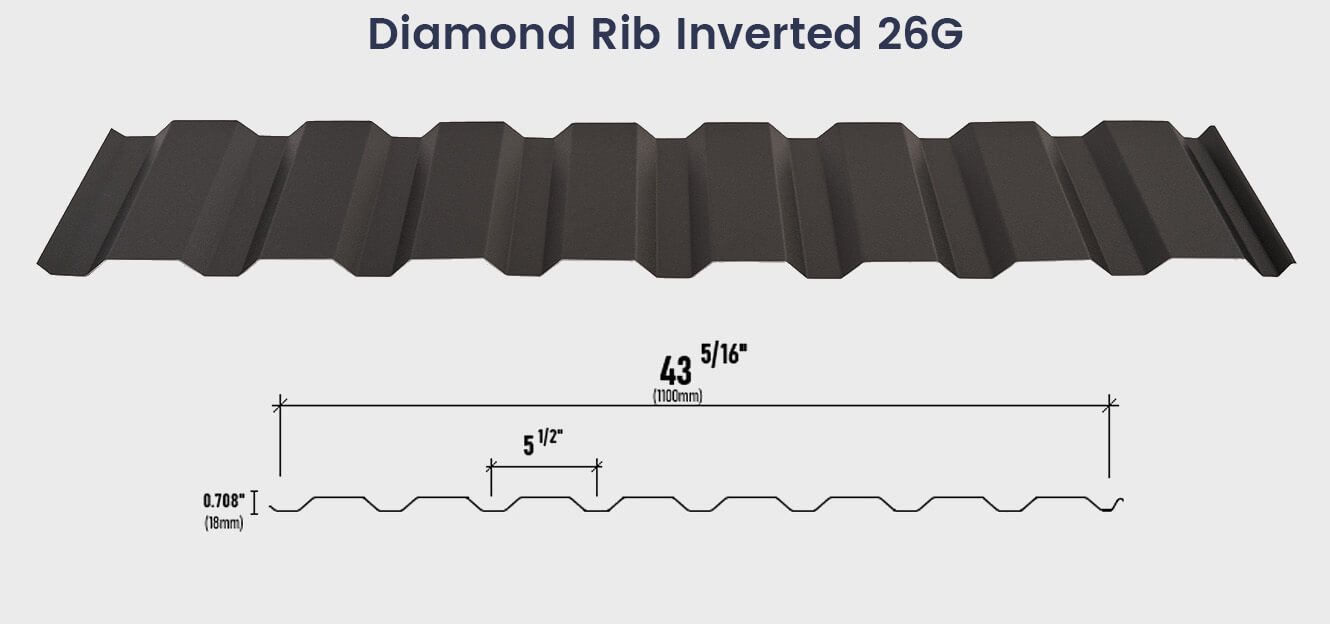

Diamond Rib Inverted

This product is specifically designed to be used for wall applications only.

Technical details

Effective coverage width

approx. 3.93/36 in

1100mm/914mm

Steel sheet thickness

26 gauge

Zinc coating

G90/AZ50

Total height

approx. 0.7 in

18 mm

Min. panel length

approx. 1.97 in

50 mm

Max. panel length

approx. 394 in

10,000 mm

Application

Wall only

*Colours may vary from the actual product.

Terra Cotta
RAL-8004

Graphite Grey
RAL-7024

Oxide Red
RAL-3009

Black
RAL-9005

Ocean Blue
RAL-5020

Blue Gray
RAL-7016

Burgundy
RAL-3005

Chocolate Brown
RAL-8017

Green
RAL-6020

Moca Brown
RAL-8017

Bone White
QC-28273

50
YEARS

Manufacturer's warranties
